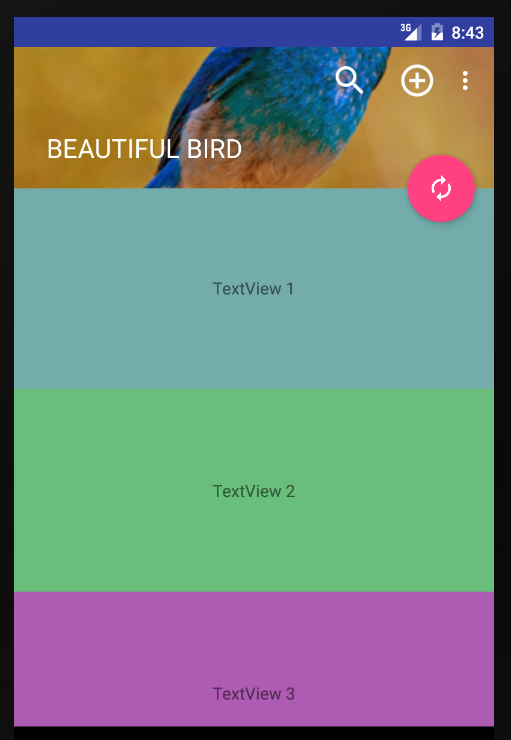

Android CollapsingToolbarLayout Example

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.design.widget.CoordinatorLayout
    android:id="@+id/coordinator_layout"
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity"
    android:fitsSystemWindows="true"
    >
    <android.support.design.widget.AppBarLayout
        android:id="@+id/app_bar_layout"
        android:layout_width="match_parent"
        android:layout_height="256dp"
        app:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar"
        android:fitsSystemWindows="true"
        >
        <android.support.design.widget.CollapsingToolbarLayout
            android:id="@+id/collapsing_toolbar_layout"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            app:layout_scrollFlags="scroll|exitUntilCollapsed"
            android:fitsSystemWindows="true"
            app:contentScrim="@color/colorPrimary"
            app:expandedTitleMarginStart="48dp"
            app:expandedTitleMarginEnd="48dp"
            >
            <ImageView
                android:id="@+id/image_view"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:scaleType="centerCrop"
                android:fitsSystemWindows="true"
                app:layout_collapseMode="parallax"
                android:src="@drawable/bird"
                />
            <android.support.v7.widget.Toolbar
                android:id="@+id/toolbar"
                android:layout_width="match_parent"
                android:layout_height="?attr/actionBarSize"
                app:popupTheme="@style/ThemeOverlay.AppCompat.Light"
                app:layout_collapseMode="pin"
                />
        </android.support.design.widget.CollapsingToolbarLayout>
    </android.support.design.widget.AppBarLayout>

    <android.support.v4.widget.NestedScrollView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        app:layout_behavior="@string/appbar_scrolling_view_behavior"
        >
        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="vertical"
            >
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="TextView 1"
                android:padding="75dp"
                android:gravity="center"
                android:background="#73acab"
                />
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="TextView 2"
                android:padding="75dp"
                android:gravity="center"
                android:background="#68be7a"
                />
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="TextView 3"
                android:padding="75dp"
                android:gravity="center"
                android:background="#ad5bb3"
                />
            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="TextView 4"
                android:padding="75dp"
                android:gravity="center"
                android:background="#b3935b"
                />
        </LinearLayout>
    </android.support.v4.widget.NestedScrollView>

    <android.support.design.widget.FloatingActionButton
        android:id="@+id/fab"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_margin="16dp"
        android:src="@drawable/ic_autorenew_white_48dp"
        app:layout_anchor="@id/app_bar_layout"
        app:layout_anchorGravity="bottom|right|end"
        />
</android.support.design.widget.CoordinatorLayout>
MainActivity.java

package com.cfsuman.me.androidcodesnippets;

import android.app.Activity;
import android.content.Context;
import android.support.design.widget.CollapsingToolbarLayout;
import android.support.design.widget.CoordinatorLayout;
import android.support.design.widget.FloatingActionButton;
import android.support.design.widget.Snackbar;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.support.v7.widget.Toolbar;
import android.view.Menu;
import android.view.View;


public class MainActivity extends AppCompatActivity {
    private Context mContext;
    private Activity mActivity;

    private CoordinatorLayout mCLayout;
    private FloatingActionButton mFAB;

    private Toolbar mToolbar;
    private CollapsingToolbarLayout mCollapsingToolbarLayout;


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Get the application context
        mContext = getApplicationContext();
        mActivity = MainActivity.this;

        // Get the widget reference from XML layout
        mCLayout = (CoordinatorLayout) findViewById(R.id.coordinator_layout);
        mFAB = (FloatingActionButton) findViewById(R.id.fab);

        mToolbar = (Toolbar) findViewById(R.id.toolbar);
        mCollapsingToolbarLayout = (CollapsingToolbarLayout) findViewById(R.id.collapsing_toolbar_layout);

        // Set the support action bar
        setSupportActionBar(mToolbar);

        //getSupportActionBar().setDisplayHomeAsUpEnabled(true);

        // Set a title for collapsing toolbar layout

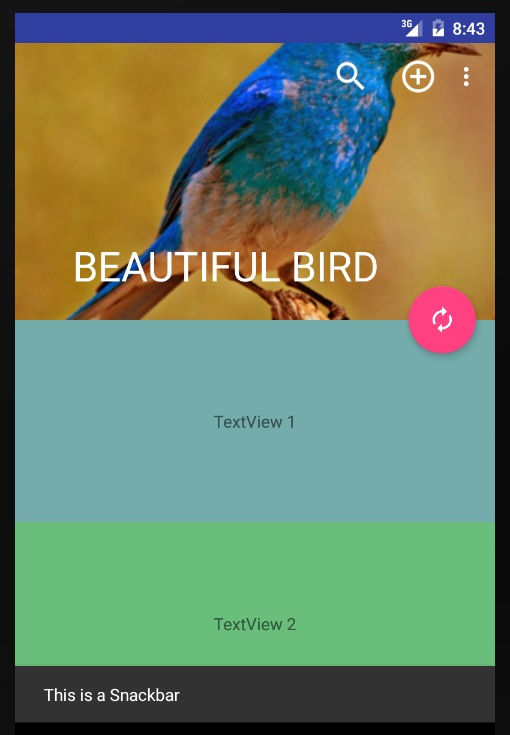

        mCollapsingToolbarLayout.setTitle("BEAUTIFUL BIRD");

        // Set a click listener for Floating Action Button
        mFAB.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                // Initialize a new Snackbar instance
                Snackbar snackbar = Snackbar.make(
                        mCLayout,
                        "This is a Snackbar",
                        Snackbar.LENGTH_LONG);
                // Display the Snackbar
                snackbar.show();
            }
        });
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu){
        getMenuInflater().inflate(R.menu.toolbar_menu, menu);
        return true;
    }
}
res/manu/toolbar_menu.xml

<?xml version="1.0" encoding="utf-8"?>
<menu
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    >
    <item
        android:id="@+id/search"
        android:title="search"
        app:showAsAction="always"
        android:icon="@drawable/ic_search_white_48dp"
        />
    <item
        android:id="@+id/add"
        android:title="Add"
        app:showAsAction="ifRoom"
        android:icon="@drawable/ic_add_circle_outline_white_48dp"
        />
    <item
        android:id="@+id/remove"
        android:title="Remove"
        app:showAsAction="never|withText"
        android:icon="@drawable/ic_remove_circle_outline_white_48dp"
        />
</menu>
res/values/styles.xml

<resources>

    <!-- Base application theme. -->
    <style name="AppTheme" parent="Theme.AppCompat.Light.DarkActionBar">
        <!-- Customize your theme here. -->
        <item name="colorPrimary">@color/colorPrimary</item>
        <item name="colorPrimaryDark">@color/colorPrimaryDark</item>
        <item name="colorAccent">@color/colorAccent</item>

        <!-- Important for CollapsingToolbarLayout -->
        <item name="windowNoTitle">true</item>
    </style>

    <style name="AppTheme.AppBarOverlay" parent="ThemeOverlay.AppCompat.Dark.ActionBar" />
    <style name="AppTheme.PopupOverlay" parent="ThemeOverlay.AppCompat.Light" />

</resources>
build.gradle dependencies

compile 'com.android.support:appcompat-v7:23.4.0'
compile 'com.android.support:design:23.4.0'
