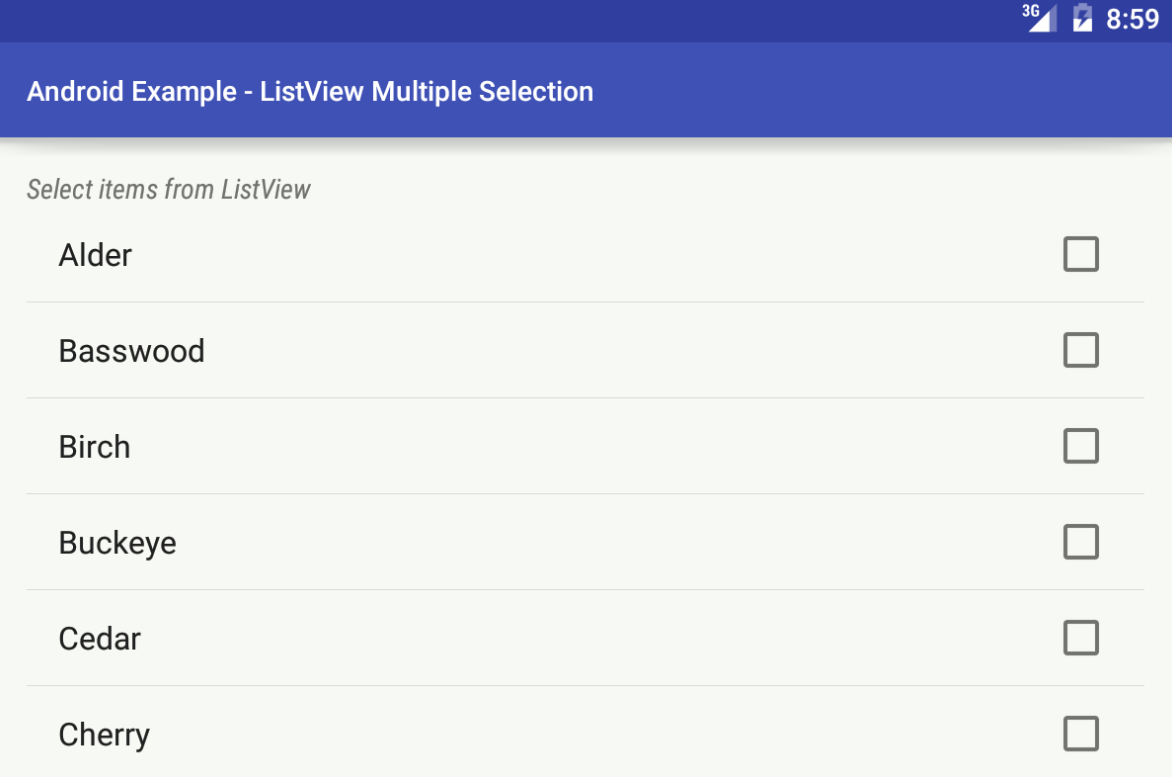

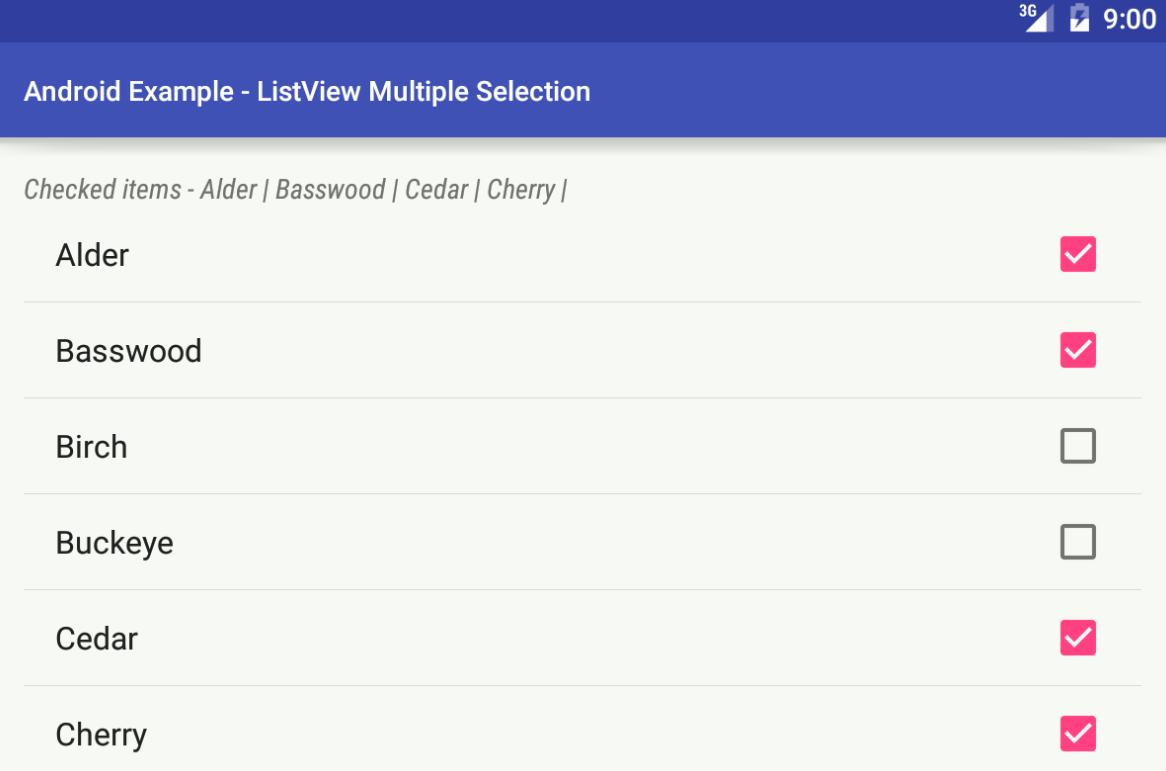

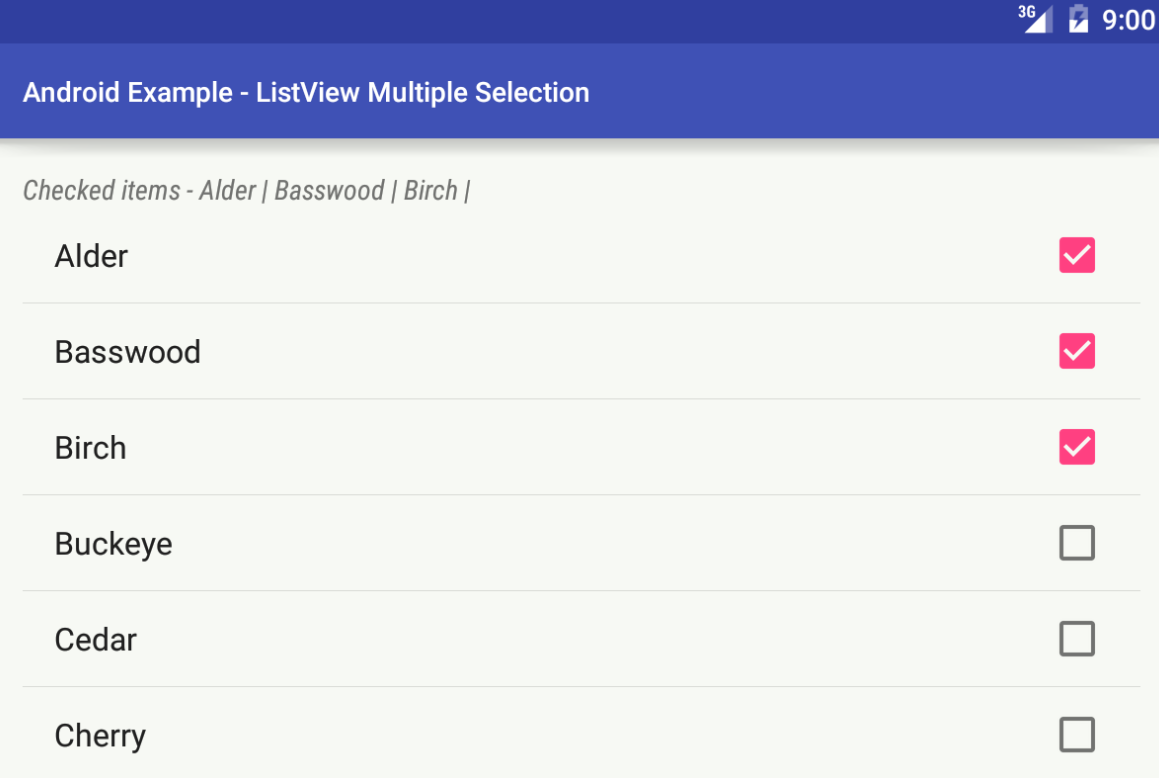

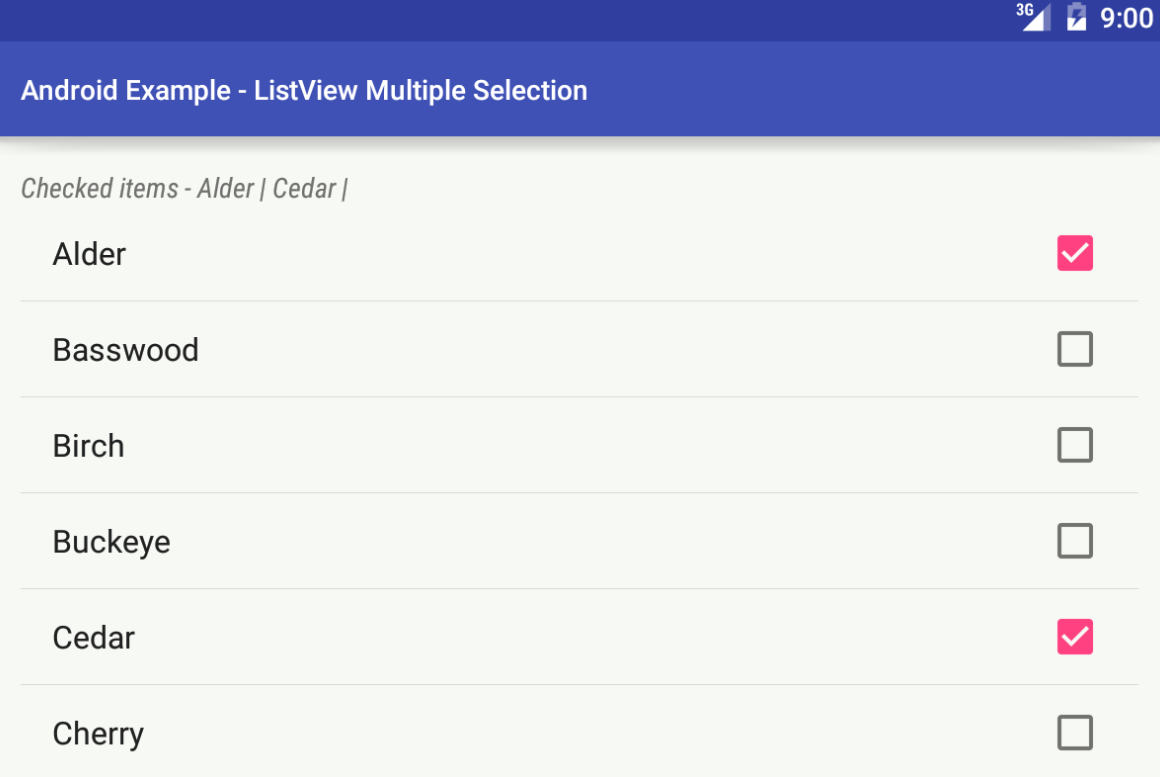

android - ListView multiple selection example

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/rl"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    tools:context=".MainActivity"
    android:background="#f7f9f4"
    >
    <TextView
        android:id="@+id/tv"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Select items from ListView"
        android:textStyle="italic"
        android:fontFamily="sans-serif-condensed"
        />
    <ListView
        android:id="@+id/lv"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:choiceMode="multipleChoice"
        android:layout_below="@id/tv"
        >
    </ListView>
</RelativeLayout>
MainActivity.java

package com.cfsuman.me.androidcodesnippets;

import android.app.Activity;
import android.content.Context;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.util.SparseBooleanArray;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.RelativeLayout;
import android.widget.TextView;

import java.util.Arrays;
import java.util.List;


public class MainActivity extends AppCompatActivity {

    private Context mContext;
    private Activity mActivity;

    private RelativeLayout mRelativeLayout;
    private ListView mListView;
    private TextView mTextView;


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Get the application context
        mContext = getApplicationContext();

        // Get the activity
        mActivity = MainActivity.this;

        // Get the widgets reference from XML layout
        mRelativeLayout = (RelativeLayout) findViewById(R.id.rl);
        mListView = (ListView) findViewById(R.id.lv);
        mTextView = (TextView) findViewById(R.id.tv);

        // Initializing a new list
        List<String> trees = Arrays.asList(
                "Alder",
                "Basswood",
                "Birch",
                "Buckeye",
                "Cedar",
                "Cherry",
                "Chestnut",
                "Hawthorn",
                "Cypress",
                "Honeylocust"
        );

        // Initialize a new ArrayAdapter
        ArrayAdapter<String> adapter = new ArrayAdapter(
                mActivity,
                android.R.layout.simple_list_item_multiple_choice,
                trees
        );

        // Set the adapter for ListView
        mListView.setAdapter(adapter);

        // Set an item click listener for the ListView
        mListView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> adapterView, View view, int i, long l) {
                SparseBooleanArray clickedItemPositions = mListView.getCheckedItemPositions();

                // Set the TextView text
                mTextView.setText("Checked items - ");

                for(int index=0;index<clickedItemPositions.size();index++){
                    // Get the checked status of the current item
                    boolean checked = clickedItemPositions.valueAt(index);

                    if(checked){
                        // If the current item is checked
                        int key = clickedItemPositions.keyAt(index);
                        String item = (String) mListView.getItemAtPosition(key);

                        // Display the checked items on TextView
                        mTextView.setText(mTextView.getText() + item + " | ");
                    }
                }
            }
        });
    }
}
