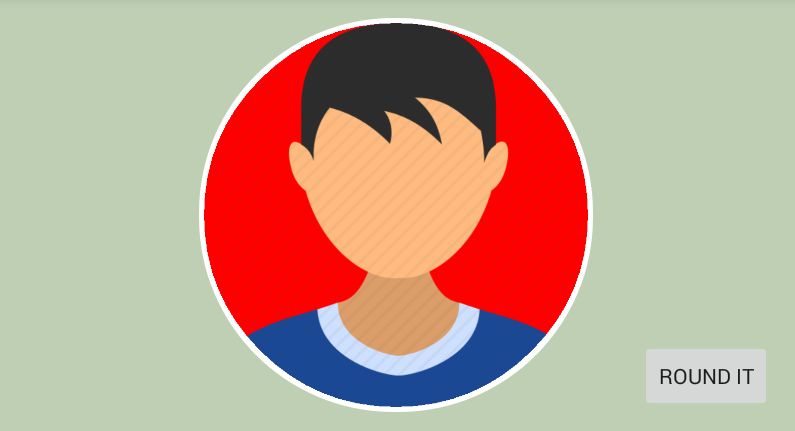

android - How to create a circular ImageView with border

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/rl"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    tools:context=".MainActivity"
    android:background="#becfb4"
    >
    <ImageView
        android:id="@+id/iv"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        />
    <Button
        android:id="@+id/btn"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Round It"
        android:layout_alignParentBottom="true"
        android:layout_alignParentRight="true"
        />
</RelativeLayout>
MainActivity.java

package com.cfsuman.me.androidcode;

import android.content.Context;
import android.content.res.Resources;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.support.v4.graphics.drawable.RoundedBitmapDrawable;
import android.support.v4.graphics.drawable.RoundedBitmapDrawableFactory;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.view.Window;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.RelativeLayout;

import java.io.IOException;


public class MainActivity extends AppCompatActivity {
    private Context mContext;
    private Resources mResources;
    private RelativeLayout mRelativeLayout;
    private Button mBTN;
    private ImageView mImageView;
    private Bitmap mBitmap;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        // Request for window feature action bar
        requestWindowFeature(Window.FEATURE_ACTION_BAR);
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        // Get the application context
        mContext = getApplicationContext();

        // Get the Resources
        mResources = getResources();

        // Get the widgets reference from XML layout
        mRelativeLayout = (RelativeLayout) findViewById(R.id.rl);
        mImageView = (ImageView) findViewById(R.id.iv);
        mBTN = (Button) findViewById(R.id.btn);

        // Hide the action bar
        getSupportActionBar().hide();

        // Get the bitmap from drawable resources
        mBitmap = BitmapFactory.decodeResource(mResources,R.drawable.avatar_boy);

        // Display the bitmap in ImageView
        mImageView.setImageBitmap(mBitmap);

        // Set an image for ImageView
        mImageView.setImageBitmap(mBitmap);

        // Set a click listener for Button widget
        mBTN.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {
                /*
                // We can also use assets image
                try{
                    mBitmap = BitmapFactory.decodeStream(getAssets().open("avatar_boy.png"));
                    mImageView.setImageDrawable(createRoundedBitmapDrawableWithBorder(mBitmap));

                }catch (IOException e){
                    e.printStackTrace();
                }
                */

                // Convert the ImageView image to a rounded corners image with border
                RoundedBitmapDrawable drawable = createRoundedBitmapDrawableWithBorder(mBitmap);

                // Set the ImageView image as drawable object
                mImageView.setImageDrawable(drawable);
            }
        });
    }

    private RoundedBitmapDrawable createRoundedBitmapDrawableWithBorder(Bitmap bitmap){
        int bitmapWidth = bitmap.getWidth();
        int bitmapHeight = bitmap.getHeight();
        int borderWidthHalf = 10; // In pixels
        //Toast.makeText(mContext,""+bitmapWidth+"|"+bitmapHeight,Toast.LENGTH_SHORT).show();

        // Calculate the bitmap radius
        int bitmapRadius = Math.min(bitmapWidth,bitmapHeight)/2;

        int bitmapSquareWidth = Math.min(bitmapWidth,bitmapHeight);
        //Toast.makeText(mContext,""+bitmapMin,Toast.LENGTH_SHORT).show();

        int newBitmapSquareWidth = bitmapSquareWidth+borderWidthHalf;
        //Toast.makeText(mContext,""+newBitmapMin,Toast.LENGTH_SHORT).show();

        /*
            Initializing a new empty bitmap.
            Set the bitmap size from source bitmap
            Also add the border space to new bitmap
        */
        Bitmap roundedBitmap = Bitmap.createBitmap(newBitmapSquareWidth,newBitmapSquareWidth,Bitmap.Config.ARGB_8888);

        /*
            Canvas
                The Canvas class holds the "draw" calls. To draw something, you need 4 basic
                components: A Bitmap to hold the pixels, a Canvas to host the draw calls (writing
                into the bitmap), a drawing primitive (e.g. Rect, Path, text, Bitmap), and a paint
                (to describe the colors and styles for the drawing).

            Canvas(Bitmap bitmap)
                Construct a canvas with the specified bitmap to draw into.
        */
        // Initialize a new Canvas to draw empty bitmap
        Canvas canvas = new Canvas(roundedBitmap);

        /*
            drawColor(int color)
                Fill the entire canvas' bitmap (restricted to the current clip) with the specified
                color, using srcover porterduff mode.
        */
        // Draw a solid color to canvas
        canvas.drawColor(Color.RED);

        // Calculation to draw bitmap at the circular bitmap center position
        int x = borderWidthHalf + bitmapSquareWidth - bitmapWidth;
        int y = borderWidthHalf + bitmapSquareWidth - bitmapHeight;

        /*
            drawBitmap(Bitmap bitmap, float left, float top, Paint paint)
                Draw the specified bitmap, with its top/left corner at (x,y), using the specified
                paint, transformed by the current matrix.
        */
        /*
            Now draw the bitmap to canvas.
            Bitmap will draw its center to circular bitmap center by keeping border spaces
        */
        canvas.drawBitmap(bitmap, x, y, null);

        // Initializing a new Paint instance to draw circular border
        Paint borderPaint = new Paint();
        borderPaint.setStyle(Paint.Style.STROKE);
        borderPaint.setStrokeWidth(borderWidthHalf*2);
        borderPaint.setColor(Color.WHITE);

        /*
            drawCircle(float cx, float cy, float radius, Paint paint)
                Draw the specified circle using the specified paint.
        */
        /*
            Draw the circular border to bitmap.
            Draw the circle at the center of canvas.
         */
        canvas.drawCircle(canvas.getWidth()/2, canvas.getWidth()/2, newBitmapSquareWidth/2, borderPaint);

        /*
            RoundedBitmapDrawable
                A Drawable that wraps a bitmap and can be drawn with rounded corners. You can create
                a RoundedBitmapDrawable from a file path, an input stream, or from a Bitmap object.
        */
        /*
            public static RoundedBitmapDrawable create (Resources res, Bitmap bitmap)
                Returns a new drawable by creating it from a bitmap, setting initial target density
                based on the display metrics of the resources.
        */
        /*
            RoundedBitmapDrawableFactory
                Constructs RoundedBitmapDrawable objects, either from Bitmaps directly, or from
                streams and files.
        */
        // Create a new RoundedBitmapDrawable
        RoundedBitmapDrawable roundedBitmapDrawable = RoundedBitmapDrawableFactory.create(mResources,roundedBitmap);

        /*
            setCornerRadius(float cornerRadius)
                Sets the corner radius to be applied when drawing the bitmap.
        */
        // Set the corner radius of the bitmap drawable
        roundedBitmapDrawable.setCornerRadius(bitmapRadius);

        /*
            setAntiAlias(boolean aa)
                Enables or disables anti-aliasing for this drawable.
        */
        roundedBitmapDrawable.setAntiAlias(true);

        // Return the RoundedBitmapDrawable
        return roundedBitmapDrawable;
    }
}
