Sunday, May 10, 2015

How to use TimePicker in Android

Table of contents
  1. Android TimePicker Example
    • TimePicker OnTimeChangedListener
    • TimePicker Mode Spinner
  2. TimePicker 24 hour and 12 hour format
  3. Get TimePicker Current Time
  4. TimePicker set time programmatically
Upcoming Tutorials
  1. TimePicker style
  2. TimePicker seconds
  3. TimePicker text color
  4. TimePicker set minimum time
  5. TimePicker only minutes

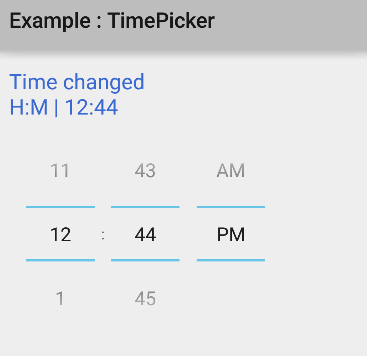

1. Android TimePicker Example

activity_main.xml

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    tools:context=".MainActivity"
    >
    <TextView
        android:id="@+id/tv"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:textSize="20dp"
        android:textColor="#3A69D3"
        />
    <!--This example works only timePickerMode=spinner only, not in clock mode-->
    <TimePicker
        android:id="@+id/tp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@id/tv"
        android:timePickerMode="spinner"
        />
</RelativeLayout>
MainActivity.java

package com.cfsuman.me.androidcodesnippets;

import android.os.Bundle;
import android.app.Activity;
import android.widget.TextView;
import java.util.Calendar;
import android.widget.TimePicker;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        //Get a new instance of Calendar
        final Calendar c= Calendar.getInstance();
        int hourOfDay = c.get(c.HOUR_OF_DAY); //Current Hour
        int minute = c.get(c.MINUTE); //Current Minute
        int second = c.get(c.SECOND); //Current Second

        //Get the widgets reference from XML layout
        final TextView tv = (TextView) findViewById(R.id.tv);
        TimePicker tp = (TimePicker) findViewById(R.id.tp);

        //Display the TimePicker initial time
        tv.setText("Initial Time\nH:M:S | " + hourOfDay + ":" + minute + ":" + second);

        //Set a TimeChangedListener for TimePicker widget
        tp.setOnTimeChangedListener(new TimePicker.OnTimeChangedListener() {
            @Override
            public void onTimeChanged(TimePicker view, int hourOfDay, int minute) {
                //Display the new time to app interface
                tv.setText("Time changed\nH:M | "+hourOfDay + ":" + minute);
            }
        });
   }
}

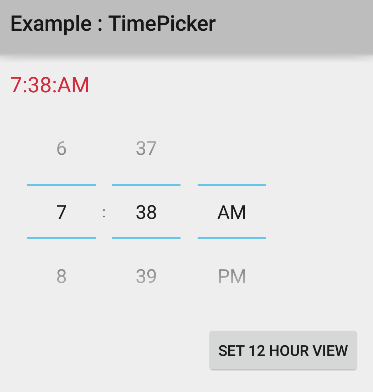

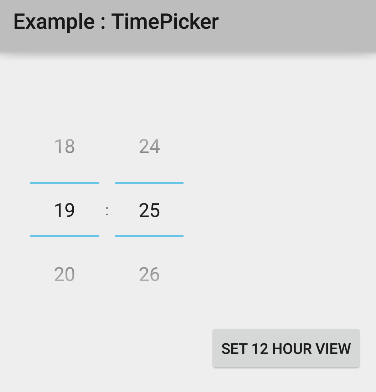

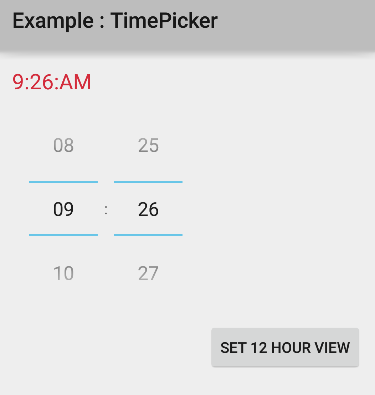

2. TimePicker 24 hour and 12 hour format

activity_main.xml

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    tools:context=".MainActivity"
    >
    <TextView
        android:id="@+id/tv"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:textSize="20dp"
        />
    <TimePicker
        android:id="@+id/tp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@id/tv"
        android:timePickerMode="spinner"
        />
    <Button
        android:id="@+id/btn"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Set 12 Hour View"
        android:layout_below="@id/tp"
        android:layout_alignParentRight="true"
        />
</RelativeLayout>
MainActivity.java

package com.cfsuman.me.androidcodesnippets;

import android.graphics.Color;
import android.os.Bundle;
import android.app.Activity;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;
import android.widget.TimePicker;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        //Get the widgets reference from XML layout
        final TextView tv = (TextView) findViewById(R.id.tv);
        final TimePicker tp = (TimePicker) findViewById(R.id.tp);
        Button btn = (Button) findViewById(R.id.btn);

        //Set the TextView text color
        tv.setTextColor(Color.parseColor("#ffd32b3b"));

        //Set the TimePicker view to 24 hour view
        tp.setIs24HourView(true);

        //Set a TimeChangedListener for TimePicker widget
        tp.setOnTimeChangedListener(new TimePicker.OnTimeChangedListener() {
            @Override
            public void onTimeChanged(TimePicker view, int hourOfDay, int minute) {
                //Display the new time to app interface
                String AMPM = "AM";
                if(hourOfDay>11)
                {
                    hourOfDay = hourOfDay-12;
                    AMPM = "PM";
                }
                tv.setText("" + hourOfDay + ":" + minute + ":" + AMPM);
            }
        });

        btn.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                //Set the TimePicker view to 12 hour view (AM PM format)
                tp.setIs24HourView(false);
            }
        });
   }
}

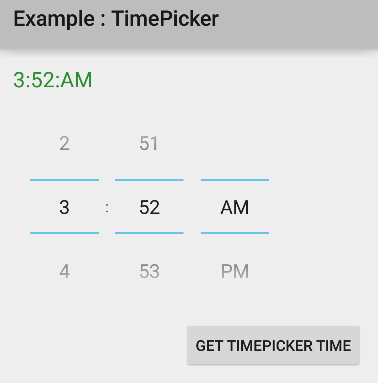

3. Get TimePicker Current Time

activity_main.xml

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    tools:context=".MainActivity"
    >
    <TextView
        android:id="@+id/tv"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:textSize="20dp"
        />
    <TimePicker
        android:id="@+id/tp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_below="@id/tv"
        android:timePickerMode="spinner"
        />
    <Button
        android:id="@+id/btn"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Get TimePicker Time"
        android:layout_below="@id/tp"
        android:layout_alignParentRight="true"
        />
</RelativeLayout>
MainActivity.java

package com.cfsuman.me.androidcodesnippets;

import android.graphics.Color;
import android.os.Bundle;
import android.app.Activity;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;
import android.widget.TimePicker;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        //Get the widgets reference from XML layout
        final TextView tv = (TextView) findViewById(R.id.tv);
        final TimePicker tp = (TimePicker) findViewById(R.id.tp);
        Button btn = (Button) findViewById(R.id.btn);

        //Set the TextView text color
        tv.setTextColor(Color.parseColor("#ff2b9030"));

        btn.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                int hourOfDay = tp.getCurrentHour(); //Get TimePicker current hour
                int minute = tp.getCurrentMinute(); //Get TimePicker current minute

                //Display the TimePicker current time to app interface
                String AMPM = "AM";
                if(hourOfDay>11)
                {
                    //Get the current hour as AM PM 12 hour format
                    hourOfDay = hourOfDay-12;
                    AMPM = "PM";
                }
                tv.setText("" + hourOfDay + ":" + minute + ":" + AMPM);
            }
        });
   }
}

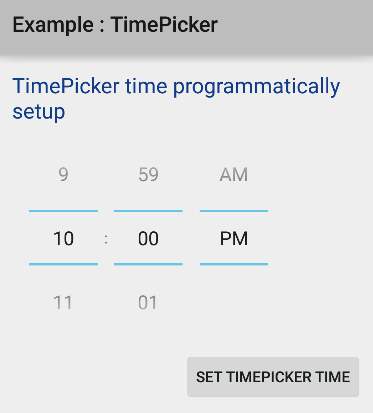

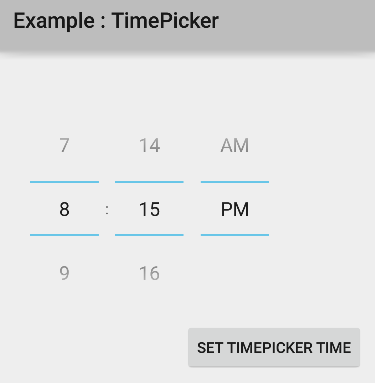

4. TimePicker set time programmatically

MainActivity.java

package com.cfsuman.me.androidcodesnippets;

import android.graphics.Color;
import android.os.Bundle;
import android.app.Activity;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;
import android.widget.TimePicker;

public class MainActivity extends Activity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        //Get the widgets reference from XML layout
        final TextView tv = (TextView) findViewById(R.id.tv);
        final TimePicker tp = (TimePicker) findViewById(R.id.tp);
        Button btn = (Button) findViewById(R.id.btn);

        //Set the TextView text color
        tv.setTextColor(Color.parseColor("#123C89"));

        btn.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                //Get TimePicker current hour and add 2 hours with it
                int newHourOfDay = tp.getCurrentHour()+2;
                //Get TimePicker current minute and subtract 15 minutes from it
                int newMinute = tp.getCurrentMinute()-15;

                //Here we programmatically set the TimePicker time (Hour and Minute)

                //Set the TimePicker new current hour by adding 2 hours with current hour
                tp.setCurrentHour(newHourOfDay);
                //Set the TimePicker current minute by subtracting 15 minutes with current minute
                tp.setCurrentMinute(newMinute);

                //Notify the user about time change
                tv.setText("TimePicker time programmatically setup");
            }
        });
   }
}
