Friday, April 10, 2015

How to use TimePickerDialog in Android

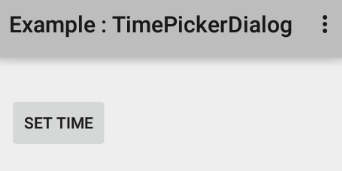

1. Android TimePickerDialog Example

activity_main.xml

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    tools:context=".MainActivity"
    >
    <TextView
        android:id="@+id/tv"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        />
    <Button
        android:id="@+id/btn"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:onClick="onButtonClicked"
        android:text="Set Time"
        android:layout_below="@id/tv"
        />
</RelativeLayout>
MainActivity.java (Partial code)

public void onButtonClicked(View v){
 DialogFragment newFragment = new TimePickerFragment();
 newFragment.show(getFragmentManager(),"TimePicker");
}
Additional imported classes

import android.view.View;
import android.app.DialogFragment;
TimePickerFragment.java

package com.cfsuman.me.androidexamples;


import android.app.TimePickerDialog;
import android.os.Bundle;
import android.app.Fragment;
import android.text.format.DateFormat;
import android.widget.TextView;
import android.app.DialogFragment;
import android.app.Dialog;
import java.util.Calendar;
import android.widget.TimePicker;


/**
 * A simple {@link Fragment} subclass.
 */
public class TimePickerFragment extends DialogFragment implements TimePickerDialog.OnTimeSetListener{

    @Override
    public Dialog onCreateDialog(Bundle savedInstanceState){
        //Use the current time as the default values for the time picker
        final Calendar c = Calendar.getInstance();
        int hour = c.get(Calendar.HOUR_OF_DAY);
        int minute = c.get(Calendar.MINUTE);

        //Create and return a new instance of TimePickerDialog
        return new TimePickerDialog(getActivity(),this, hour, minute,
                DateFormat.is24HourFormat(getActivity()));
    }

    //onTimeSet() callback method

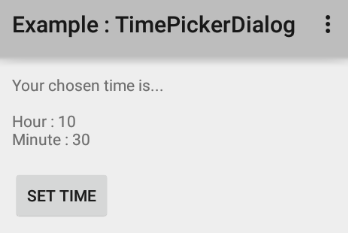

    public void onTimeSet(TimePicker view, int hourOfDay, int minute){
        //Do something with the user chosen time
        //Get reference of host activity (XML Layout File) TextView widget
        TextView tv = (TextView) getActivity().findViewById(R.id.tv);
        //Set a message for user
        tv.setText("Your chosen time is...\n\n");
        //Display the user changed time on TextView
        tv.setText(tv.getText()+ "Hour : " + String.valueOf(hourOfDay)
                + "\nMinute : " + String.valueOf(minute) + "\n");
    }
}

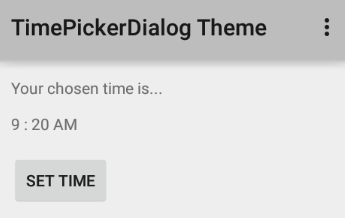

2. TimePickerDialog Theme, AM PM and Title

TimePickerFragment.java

package com.cfsuman.me.androidexamples;


import android.app.AlertDialog;
import android.app.TimePickerDialog;
import android.graphics.Color;
import android.os.Bundle;
import android.app.Fragment;
import android.text.format.DateFormat;
import android.view.Gravity;
import android.widget.TextView;
import android.app.DialogFragment;
import android.app.Dialog;
import java.util.Calendar;
import android.widget.TimePicker;


/**
 * A simple {@link Fragment} subclass.
 */
public class TimePickerFragment extends DialogFragment implements TimePickerDialog.OnTimeSetListener{

    @Override
    public Dialog onCreateDialog(Bundle savedInstanceState){
        //Use the current time as the default values for the time picker
        final Calendar c = Calendar.getInstance();
        int hour = c.get(Calendar.HOUR_OF_DAY);
        int minute = c.get(Calendar.MINUTE);

        //Create and return a new instance of TimePickerDialog
        /*
            public constructor.....
            TimePickerDialog(Context context, int theme,
             TimePickerDialog.OnTimeSetListener callBack, int hourOfDay, int minute, boolean is24HourView)

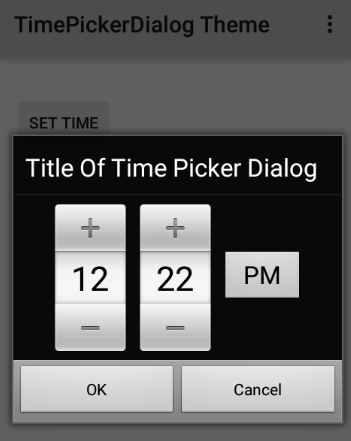

            The 'theme' parameter allow us to specify the theme of TimePickerDialog

            .......List of Themes.......
            THEME_DEVICE_DEFAULT_DARK
            THEME_DEVICE_DEFAULT_LIGHT
            THEME_HOLO_DARK
            THEME_HOLO_LIGHT
            THEME_TRADITIONAL

         */
        TimePickerDialog tpd = new TimePickerDialog(getActivity(), AlertDialog.THEME_DEVICE_DEFAULT_DARK
                ,this, hour, minute, DateFormat.is24HourFormat(getActivity()));

        //You can set a simple text title for TimePickerDialog
        //tpd.setTitle("Title Of Time Picker Dialog");

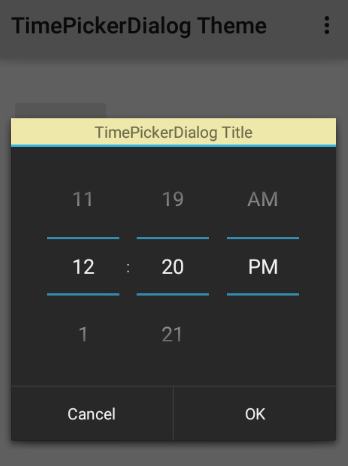

        /*.........Set a custom title for picker........*/
        TextView tvTitle = new TextView(getActivity());
        tvTitle.setText("TimePickerDialog Title");
        tvTitle.setBackgroundColor(Color.parseColor("#EEE8AA"));
        tvTitle.setPadding(5, 3, 5, 3);
        tvTitle.setGravity(Gravity.CENTER_HORIZONTAL);
        tpd.setCustomTitle(tvTitle);
        /*.........End custom title section........*/

        return tpd;
    }

    //onTimeSet() callback method
    public void onTimeSet(TimePicker view, int hourOfDay, int minute){
        //Do something with the user chosen time
        //Get reference of host activity (XML Layout File) TextView widget
        TextView tv = (TextView) getActivity().findViewById(R.id.tv);
        //Set a message for user

        //Get the AM or PM for current time
        String aMpM = "AM";
        if(hourOfDay >11)
        {
            aMpM = "PM";
        }

        //Make the 24 hour time format to 12 hour time format
        int currentHour;
        if(hourOfDay>11)
        {
            currentHour = hourOfDay - 12;
        }
        else
        {
            currentHour = hourOfDay;
        }

        tv.setText("Your chosen time is...\n\n");
        //Display the user changed time on TextView
        tv.setText(tv.getText()+ String.valueOf(currentHour)
                + " : " + String.valueOf(minute) + " " + aMpM + "\n");

    }
}
