How to use GridView in Android

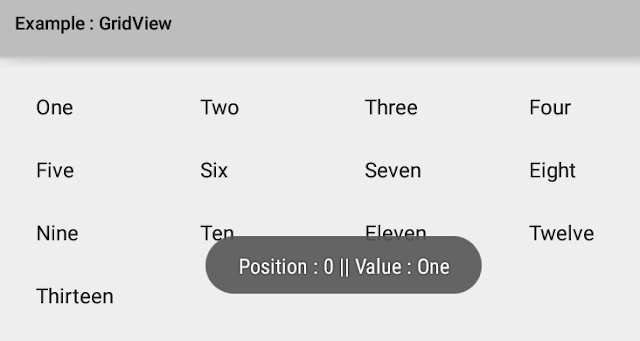

Android GridView
activity_main.xml

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    tools:context=".MainActivity"
    >
    <GridView
        android:id="@+id/gv"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:numColumns="4"
        />
</RelativeLayout>
MainActivity.java (Partial code)

@Override
protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.activity_main);

 //Initialize a String Array
 final String[] numbersArray = new String[]{
   "One","Two","Three","Four",
   "Five","Six","Seven","Eight",
   "Nine","Ten","Eleven","Twelve",
   "Thirteen"
 };

 //Get widgets reference from XML layout
 GridView gView = (GridView) findViewById(R.id.gv);

 //Initialize an ArrayAdapter and data bind with a String Array
 ArrayAdapter<String> adapter = new ArrayAdapter<String>
   (this,android.R.layout.simple_list_item_1,numbersArray);

 //Data bind GridView with ArrayAdapter
 gView.setAdapter(adapter);

 //Set an Item Click Listener for GridView items
 gView.setOnItemClickListener(new OnItemClickListener(){
  //onItemClick() callback method
  public void onItemClick(AdapterView<?> parent, View v, int position, long id){
   //Get GridView clicked item's corresponded Array element value
   String clickedItemValue = Arrays.asList(numbersArray).get(position);

   //Generate a Toast message
   String toastMessage = "Position : "+position + " || Value : " + clickedItemValue;

   //Do something in response to the GridView item click
   Toast.makeText(getApplicationContext(), toastMessage, Toast.LENGTH_SHORT).show();
  }
 });
}
Additional imported classes

import android.view.View;
import android.widget.GridView;
import android.widget.ArrayAdapter;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.AdapterView;
import android.widget.Toast;
import java.util.Arrays;
