How to use CheckBox in Android

1. Android CheckBox Example

activity_main.xml

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    android:paddingBottom="@dimen/activity_vertical_margin"
    tools:context=".MainActivity"
    >
    <CheckBox
        android:id="@+id/checkbox_red"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Red"
        android:onClick="onCheckBoxClicked"
        />
    <CheckBox
        android:id="@+id/checkbox_brown"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Brown"
        android:onClick="onCheckBoxClicked"
        android:layout_below="@id/checkbox_red"
        />
    <CheckBox
        android:id="@+id/checkbox_yellow"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Yellow"
        android:onClick="onCheckBoxClicked"
        android:layout_below="@id/checkbox_brown"
        />
    <CheckBox
        android:id="@+id/checkbox_crimson"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Crimson"
        android:onClick="onCheckBoxClicked"
        android:layout_below="@id/checkbox_yellow"
        />
    <CheckBox
        android:id="@+id/checkbox_indigo"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Indigo"
        android:onClick="onCheckBoxClicked"
        android:layout_below="@id/checkbox_crimson"
        />
</RelativeLayout>
MainActivity.java

package com.cfsuman.me.androidexamples;

import android.support.v7.app.ActionBarActivity;
import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;

//additional imported classes
import android.view.View;
import android.widget.CheckBox;
import android.graphics.Typeface;


public class MainActivity extends ActionBarActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.menu_main, menu);
        return true;
    }

    public void onCheckBoxClicked(View v){
        //Get reference of the CheckBoxes
        CheckBox cb_red = (CheckBox) findViewById(R.id.checkbox_red);
        CheckBox cb_brown = (CheckBox) findViewById(R.id.checkbox_brown);
        CheckBox cb_yellow = (CheckBox) findViewById(R.id.checkbox_yellow);
        CheckBox cb_crimson = (CheckBox) findViewById(R.id.checkbox_crimson);
        CheckBox cb_indigo = (CheckBox) findViewById(R.id.checkbox_indigo);

        //Is the view (Clicked CheckBox) now checked
        boolean checked = ((CheckBox) v).isChecked();

        //So, check which CheckBox was Clicked and generated a Click event
        switch(v.getId()){ //get the id of clicked CheckBox
            case R.id.checkbox_red:
                if (checked){
                    //if 'Red' CheckBox checked, changed its text to bold and italic
                    cb_red.setTypeface(cb_red.getTypeface(), Typeface.BOLD_ITALIC);
                }
                else{
                    //if 'Red' CheckBox unchecked, changed its text to normal state
                    cb_red.setTypeface(null, Typeface.NORMAL);
                }
                break;
            case R.id.checkbox_brown:
                if (checked){
                    cb_brown.setTypeface(cb_red.getTypeface(), Typeface.BOLD_ITALIC);
                }
                else{
                    cb_brown.setTypeface(null, Typeface.NORMAL);
                }
                break;
            case R.id.checkbox_yellow:
                if (checked){
                    cb_yellow.setTypeface(cb_red.getTypeface(), Typeface.BOLD_ITALIC);
                }
                else{
                    cb_yellow.setTypeface(null, Typeface.NORMAL);
                }
                break;
            case R.id.checkbox_crimson:
                if (checked){
                    cb_crimson.setTypeface(cb_red.getTypeface(), Typeface.BOLD_ITALIC);
                }
                else{
                    cb_crimson.setTypeface(null, Typeface.NORMAL);
                }
                break;
            case R.id.checkbox_indigo:
                if (checked){
                    cb_indigo.setTypeface(cb_red.getTypeface(), Typeface.BOLD_ITALIC);
                }
                else{
                    cb_indigo.setTypeface(null, Typeface.NORMAL);
                }
                break;
        }
    }

    @Override
    public boolean onOptionsItemSelected(MenuItem item) {
        // Handle action bar item clicks here. The action bar will
        // automatically handle clicks on the Home/Up button, so long
        // as you specify a parent activity in AndroidManifest.xml.
        int id = item.getItemId();

        //noinspection SimplifiableIfStatement
        if (id == R.id.action_settings) {
            return true;
        }

        return super.onOptionsItemSelected(item);
    }
}

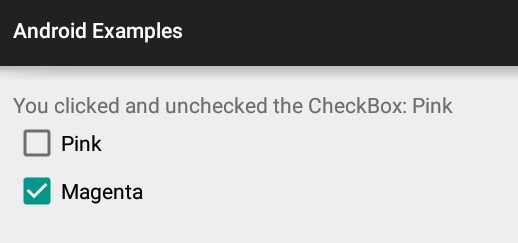

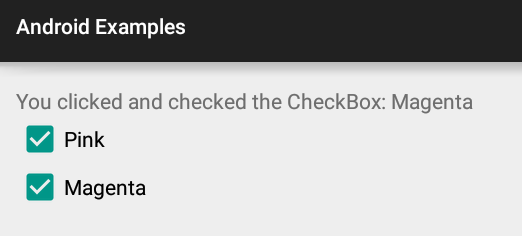

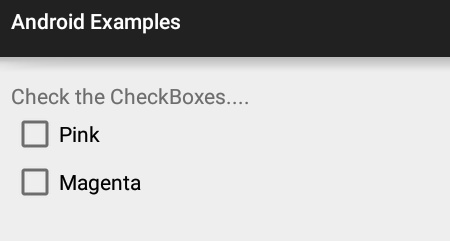

2. CheckBox Set Click Listener

activity_main.xml

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    android:paddingBottom="@dimen/activity_vertical_margin"
    tools:context=".MainActivity"
    >
    <TextView
        android:id="@+id/tv_message"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Check the CheckBoxes...."
        />
    <CheckBox

        android:id="@+id/checkbox_pink"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Pink"
        android:layout_below="@id/tv_message"
        />
    <CheckBox
        android:id="@+id/checkbox_magenta"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Magenta"
        android:layout_below="@id/checkbox_pink"
        />
</RelativeLayout>
MainActivity.java (Partial code)

@Override
protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.activity_main);

 //start the CheckBox listener coding...
 final TextView tvMessage = (TextView) findViewById(R.id.tv_message);
 final CheckBox cbPink = (CheckBox) findViewById(R.id.checkbox_pink);
 final CheckBox cbMagenta = (CheckBox) findViewById(R.id.checkbox_magenta);

 //set an OnClickListener for CheckBox Pink
 cbPink.setOnClickListener(new OnClickListener(){
  @Override
  //set a click event for CheckBox Pink
  public void onClick(View v){
   if(cbPink.isChecked())
   {
    //If the CheckBox Pink is checked then inform the user
    tvMessage.setText("You clicked and checked the CheckBox: " + cbPink.getText());
   }
   else
   {
    //Inform the user that CheckBox Pink is unchecked now by last click
    tvMessage.setText("You clicked and unchecked the CheckBox: " + cbPink.getText());
   }
  }
 });

 cbMagenta.setOnClickListener(new OnClickListener(){
    @Override
  public void onClick(View v){
      if(cbMagenta.isChecked()){
       tvMessage.setText("You clicked and checked the CheckBox: " + cbMagenta.getText());
      }
      else
      {
       tvMessage.setText("You clicked and unchecked the CheckBox: " + cbMagenta.getText());
      }
     }
 });
}
MainActivity.java (Additional imported classes)

import android.view.View;
import android.widget.CheckBox;
import android.view.View.OnClickListener;
import android.widget.TextView;

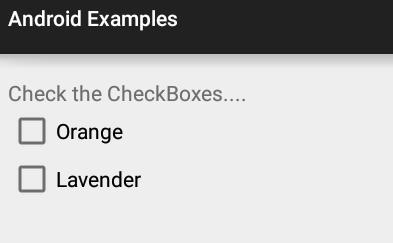

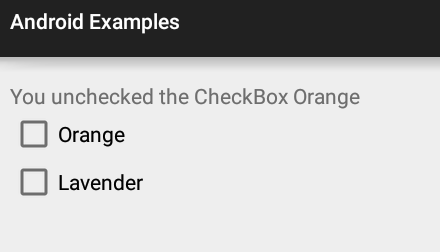

3. CheckBox OnCheckedChangeListener

activity_main.xml

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    tools:context=".MainActivity"
    >
    <TextView
        android:id="@+id/tv_message"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Check the CheckBoxes...."
        />
    <CheckBox
        android:id="@+id/checkbox_orange"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Orange"
        android:layout_below="@id/tv_message"
        />
    <CheckBox
        android:id="@+id/checkbox_lavender"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Lavender"
        android:layout_below="@id/checkbox_orange"
        />
</RelativeLayout>
MainActivity.java (Partial code)

@Override
protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.activity_main);

 //start the CheckBox Checked Change Listener coding...
 final TextView tvMessage = (TextView) findViewById(R.id.tv_message);
 final CheckBox cbOrange = (CheckBox) findViewById(R.id.checkbox_orange);
 final CheckBox cbLavender = (CheckBox) findViewById(R.id.checkbox_lavender);

 //set a CheckedChangeListener for CheckBox Orange
 cbOrange.setOnCheckedChangeListener(new OnCheckedChangeListener(){
    @Override
  public void onCheckedChanged(CompoundButton cb, boolean isChecked){
   if(isChecked)
   {
    //If Orange CheckBox is checked by current click
    tvMessage.setText("You checked the CheckBox Orange");
   }
     else
   {
    //If Orange CheckBox is unchecked by current click
    tvMessage.setText("You unchecked the CheckBox Orange");
   }
    }
 });

 //set another CheckedChangeListener for CheckBox Lavender
 cbLavender.setOnCheckedChangeListener(new OnCheckedChangeListener(){
    @Override
  public void onCheckedChanged(CompoundButton cb, boolean isChecked){
     if(isChecked)
     {
      tvMessage.setText("You checked the CheckBox Lavender");
     }
     else
     {
      tvMessage.setText("You unchecked the CheckBox Lavender");
     }
    }
 });
}
MainActivity.java (Additional imported classes)

import android.widget.CheckBox;
import android.widget.TextView;
import android.widget.CompoundButton;
import android.widget.CompoundButton.OnCheckedChangeListener;

4. CheckBox Custom Style

res/layout/activity_main.xml

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    tools:context=".MainActivity"
    >
    <CheckBox
        android:id="@+id/checkbox_default"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Default Style"
        />
    <CheckBox
        android:id="@+id/checkbox_light_salmon"
        android:text="Light Salmon"
        android:layout_below="@id/checkbox_default"
        style="@style/CheckBoxCustomStyle"
        />
    <CheckBox
        android:id="@+id/checkbox_sea_green"
        android:text="Sea Green"
        android:layout_below="@id/checkbox_light_salmon"
        style="@style/CheckBoxCustomStyle"
        />
    <CheckBox
        android:id="@+id/checkbox_light_yellow"
        android:text="Light Yellow"
        android:layout_below="@id/checkbox_sea_green"
        style="@style/CheckBoxCustomStyle"
        />
</RelativeLayout>
res/values/styles.xml

<resources xmlns:android="http://schemas.android.com/apk/res/android">
    <!-- Base application theme. -->
    <!--
        //Android Latest Material Theme
        @android:style/Theme.Material (dark version)
        @android:style/Theme.Material.Light (light version)
        @android:style/Theme.Material.Light.DarkActionBar
        //require minSdkVersion =>21
    -->
    <style name="AppTheme" parent="@android:style/Theme.Material.Light">
        <!-- Customize your theme here. -->
    </style>

    <style name="CheckBoxCustomStyle" parent="@android:style/Widget.CompoundButton.CheckBox">
        <item name="android:background">@drawable/checkbox_bg</item>
        <item name="android:textColor">#800080</item>
        <item name="android:layout_margin">3dp</item>
        <item name="android:paddingLeft">10dp</item>
        <item name="android:paddingRight">15dp</item>
        <item name="android:layout_height">wrap_content</item>
        <item name="android:layout_width">wrap_content</item>
        <item name="android:button">@drawable/checkbox_custom_states</item>
    </style>
</resources>
res/drawable/checkbox_bg.xml

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
    <item>
        <shape android:shape="rectangle">
            <solid android:color="#dbe7f3"/>
            <stroke android:color="#d2e0ef" android:width="1dp"/>
            <corners android:bottomRightRadius="10dp"/>
        </shape>
    </item>
</selector>
res/drawable/checkbox_custom_states.xml

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
    <item
        android:state_checked="true"
        android:drawable="@drawable/checkbox_checked_state"
        />
    <item android:drawable="@drawable/checkbox_unchecked_state"/>
</selector>
res/drawable/checkbox_checked_state.xml

<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android">
    <item>
        <shape android:shape="rectangle">
            <solid android:color="#778899"/>
            <size android:width="20dp" android:height="20dp"/>
            <stroke android:color="#8fb5db" android:width="1dp"/>
            <corners android:radius="2dp"/>
        </shape>
    </item>
    <item android:left="2dp" android:top="2dp" android:right="2dp" android:bottom="2dp">
        <shape android:shape="rectangle">
            <solid android:color="#B0C4DE"/>
            <stroke android:color="#778899" android:width="1dp"/>
            <corners android:radius="2dp"/>
        </shape>
    </item>
</layer-list>
res/drawable/checkbox_unchecked_state.xml

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
    <item android:right="5dp" android:top="5dp">
        <shape android:shape="rectangle">
            <solid android:color="#778899"/>
            <size android:width="20dp" android:height="20dp"/>
            <stroke android:color="#3f4e5e" android:width="1dp"/>
            <corners android:radius="2dp"/>
        </shape>
    </item>
</selector>
More android examples
