Android CountDownTimer Start, Pause, Resume and Cancel (Stop)

1. CountDownTimer Start, Pause, Resume and Cancel/Stop

activity_main.xml

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    tools:context=".MainActivity"
    >
    <TextView
        android:id="@+id/tv"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="CountDownTimer will display here..."
        />
    <Button
        android:id="@+id/btn_start"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Start"
        android:layout_below="@id/tv"
        />
    <Button
        android:id="@+id/btn_pause"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Pause"
        android:layout_below="@id/tv"
        android:layout_toRightOf="@id/btn_start"
        />
    <Button
        android:id="@+id/btn_resume"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Resume"
        android:layout_below="@id/tv"
        android:layout_toRightOf="@id/btn_pause"
        />
    <Button
        android:id="@+id/btn_cancel"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:text="Cancel(Stop)"
        android:layout_below="@id/tv"
        android:layout_toRightOf="@id/btn_resume"
        />
</RelativeLayout>
MainActivity.java

package com.cfsuman.me.androidexamples;

import android.app.Activity;
import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;

//additional imported classes
import android.widget.Button;
import android.widget.TextView;
import android.os.CountDownTimer;
import android.view.View;
import android.view.View.OnClickListener;

public class MainActivity extends Activity {

    //Declare a variable to hold count down timer's paused status
    private boolean isPaused = false;
    //Declare a variable to hold count down timer's paused status
    private boolean isCanceled = false;

    //Declare a variable to hold CountDownTimer remaining time
    private long timeRemaining = 0;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        //Get reference of the XML layout's widgets
        final TextView tView = (TextView) findViewById(R.id.tv);
        final Button btnStart = (Button) findViewById(R.id.btn_start);
        final Button btnPause = (Button) findViewById(R.id.btn_pause);
        final Button btnResume = (Button) findViewById(R.id.btn_resume);
        final Button btnCancel = (Button) findViewById(R.id.btn_cancel);

        //Initially disabled the pause, resume and cancel button
        btnPause.setEnabled(false);
        btnResume.setEnabled(false);
        btnCancel.setEnabled(false);


        //Set a Click Listener for start button
        btnStart.setOnClickListener(new OnClickListener(){
            @Override
            public void onClick(View v){

                isPaused = false;
                isCanceled = false;

                //Disable the start and pause button
                btnStart.setEnabled(false);
                btnResume.setEnabled(false);
                //Enabled the pause and cancel button
                btnPause.setEnabled(true);
                btnCancel.setEnabled(true);

                CountDownTimer timer;
                long millisInFuture = 30000; //30 seconds
                long countDownInterval = 1000; //1 second


                //Initialize a new CountDownTimer instance
                timer = new CountDownTimer(millisInFuture,countDownInterval){
                    public void onTick(long millisUntilFinished){
                        //do something in every tick
                        if(isPaused || isCanceled)
                        {
                            //If the user request to cancel or paused the
                            //CountDownTimer we will cancel the current instance
                            cancel();
                        }
                        else {
                            //Display the remaining seconds to app interface
                            //1 second = 1000 milliseconds

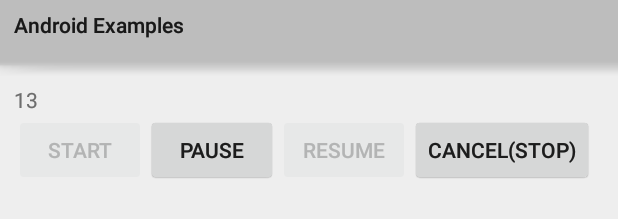

                            tView.setText("" + millisUntilFinished / 1000);
                            //Put count down timer remaining time in a variable
                            timeRemaining = millisUntilFinished;
                        }
                    }
                    public void onFinish(){
                        //Do something when count down finished
                        tView.setText("Done");

                        //Enable the start button
                        btnStart.setEnabled(true);
                        //Disable the pause, resume and cancel button
                        btnPause.setEnabled(false);
                        btnResume.setEnabled(false);
                        btnCancel.setEnabled(false);
                    }
                }.start();
            }
        });

        //Set a Click Listener for pause button
        btnPause.setOnClickListener(new OnClickListener(){
            @Override
            public void onClick(View v){

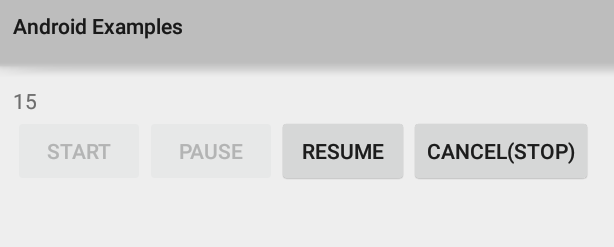

                //When user request to pause the CountDownTimer
                isPaused = true;

                //Enable the resume and cancel button
                btnResume.setEnabled(true);
                btnCancel.setEnabled(true);
                //Disable the start and pause button
                btnStart.setEnabled(false);
                btnPause.setEnabled(false);
            }
        });

        //Set a Click Listener for resume button
        btnResume.setOnClickListener(new OnClickListener(){
            @Override
            public void onClick(View v){
                //Disable the start and resume button
                btnStart.setEnabled(false);
                btnResume.setEnabled(false);
                //Enable the pause and cancel button
                btnPause.setEnabled(true);
                btnCancel.setEnabled(true);

                //Specify the current state is not paused and canceled.
                isPaused = false;
                isCanceled = false;

                //Initialize a new CountDownTimer instance
                long millisInFuture = timeRemaining;
                long countDownInterval = 1000;
                new CountDownTimer(millisInFuture, countDownInterval){
                    public void onTick(long millisUntilFinished){
                        //Do something in every tick
                        if(isPaused || isCanceled)
                        {
                            //If user requested to pause or cancel the count down timer
                            cancel();
                        }
                        else {
                            tView.setText("" + millisUntilFinished / 1000);
                            //Put count down timer remaining time in a variable
                            timeRemaining = millisUntilFinished;
                        }
                    }
                    public void onFinish(){
                        //Do something when count down finished
                        tView.setText("Done");
                        //Disable the pause, resume and cancel button
                        btnPause.setEnabled(false);
                        btnResume.setEnabled(false);
                        btnCancel.setEnabled(false);
                        //Enable the start button
                        btnStart.setEnabled(true);
                    }
                }.start();

                //Set a Click Listener for cancel/stop button
                btnCancel.setOnClickListener(new OnClickListener(){
                    @Override
                    public void onClick(View v){
                        //When user request to cancel the CountDownTimer
                        isCanceled = true;

                        //Disable the cancel, pause and resume button
                        btnPause.setEnabled(false);
                        btnResume.setEnabled(false);
                        btnCancel.setEnabled(false);
                        //Enable the start button
                        btnStart.setEnabled(true);

                        //Notify the user that CountDownTimer is canceled/stopped

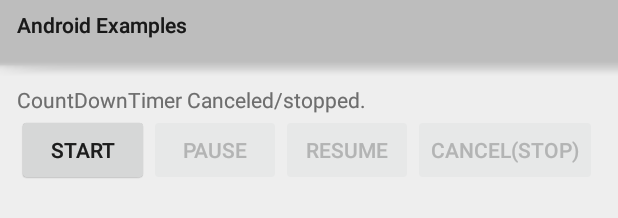

                        tView.setText("CountDownTimer Canceled/stopped.");
                    }
                });
            }
        });

        //Set a Click Listener for cancel/stop button
        btnCancel.setOnClickListener(new OnClickListener(){
            @Override
            public void onClick(View v){
                //When user request to cancel the CountDownTimer
                isCanceled = true;

                //Disable the cancel, pause and resume button
                btnPause.setEnabled(false);
                btnResume.setEnabled(false);
                btnCancel.setEnabled(false);
                //Enable the start button
                btnStart.setEnabled(true);

                //Notify the user that CountDownTimer is canceled/stopped
                tView.setText("CountDownTimer Canceled/stopped.");
            }
        });

    }


    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        // Inflate the menu; this adds items to the action bar if it is present.
        getMenuInflater().inflate(R.menu.menu_main, menu);
        return true;
    }


    @Override
    public boolean onOptionsItemSelected(MenuItem item) {
        // Handle action bar item clicks here. The action bar will
        // automatically handle clicks on the Home/Up button, so long
        // as you specify a parent activity in AndroidManifest.xml.
        int id = item.getItemId();

        //noinspection SimplifiableIfStatement
        if (id == R.id.action_settings) {
            return true;
        }

        return super.onOptionsItemSelected(item);
    }
}

2. Android CountDownTimer Example

activity_main.xml

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:padding="16dp"
    tools:context=".MainActivity"
    >
    <TextView
        android:id="@+id/tv"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"
        android:textColor="#9932CC"
        />
</RelativeLayout>
MainActivity.java (Partial code)

@Override
protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.activity_main);

 //Get reference of the XML layout's widgets
 final TextView tView = (TextView) findViewById(R.id.tv);

 //The number of milliseconds in the future from
 //the call to start() until the countdown is done
 long millisInFuture = 25000; //25 seconds
 //The interval along the way to receive onTick(long) callbacks
 long countDownInterval = 1000; //1 second

 //Initialize a new CountDownTimer instance
 new CountDownTimer(millisInFuture,countDownInterval){
  public void onTick(long millisUntilFinished){
   //do something in every tick
   //Display the remaining seconds to app interface
   //1 second = 1000 milliseconds
   tView.setText("Seconds remaining : " + millisUntilFinished / 1000);
  }
  public void onFinish(){
   //Do something when count down finished
   tView.setText("Time over...");
  }
 }.start();
}
MainActivity.java (Partial code)

import android.widget.TextView;
import android.os.CountDownTimer;
